| The APOX-SHM Board |
The APOX-SHM will have the following features:
Fully differential volume control.
APOX-IR1 option set mode for single ended operation.
on board microcontroller look up table creates 255 levels of volume control
between approx -0.8dB to -60dB.
|
|

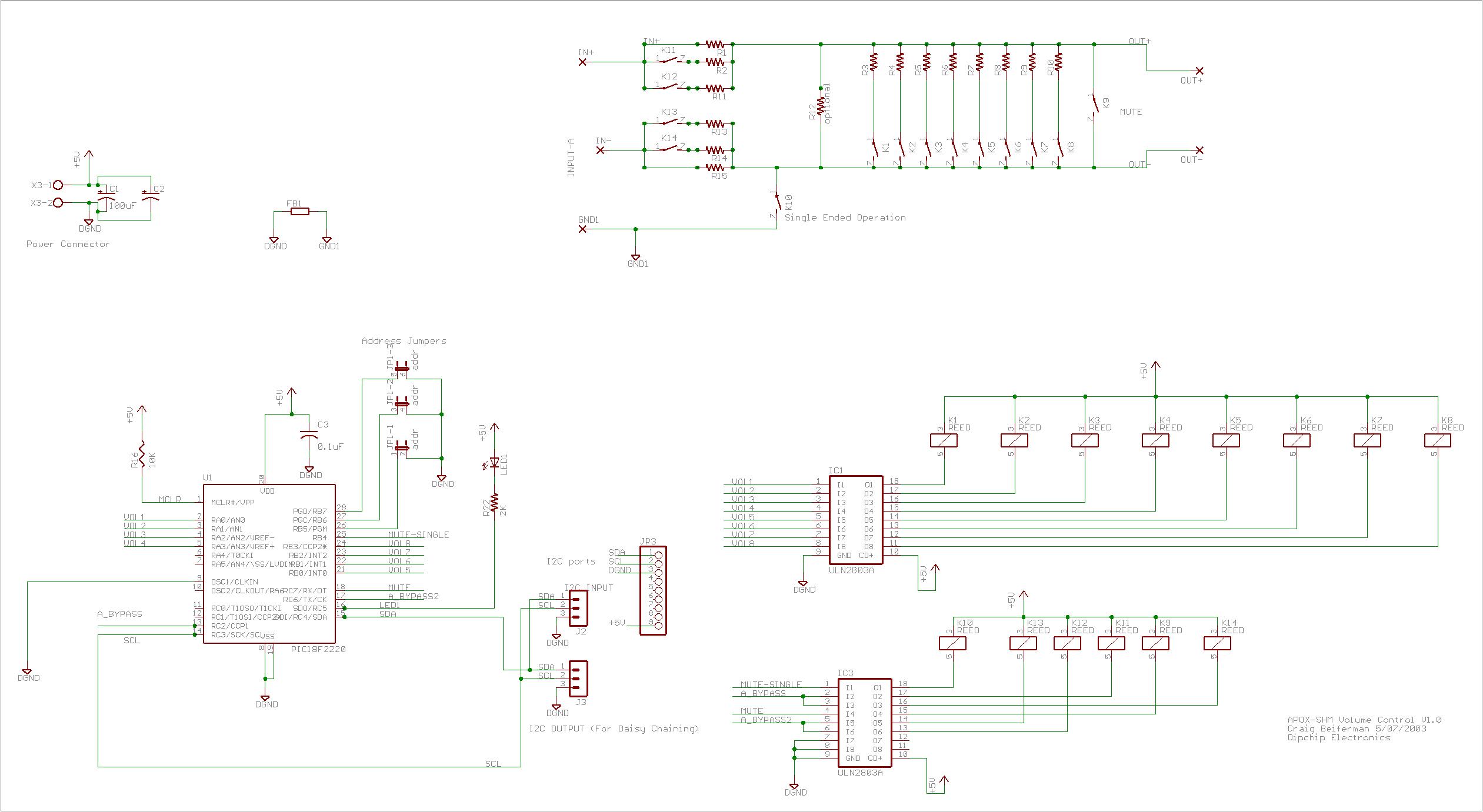

Schematics now available!
|
NOTE: These schematics are subject to change!
Click here to Download the APOX-SHM REV. 1
schematics
|
|
Assembly Instructions
|
Click here to Download the assembly
instructions in WORD format
|
|
Pics
|

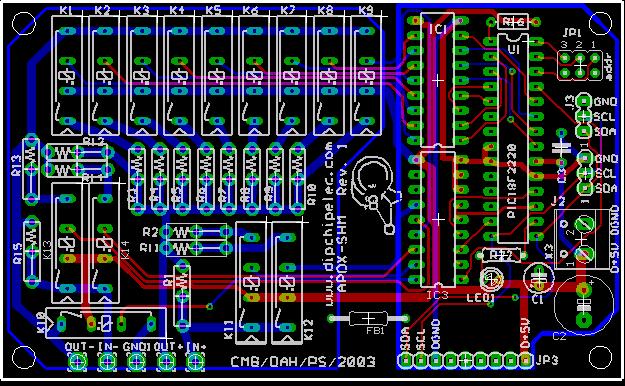

Here is the layout of the apox-shm with the ground planes ripped up for
clarity.
The assembled kit (NOTE: The resistors are ordered seperately)
|
